Hybrid Energy Power 150KW Solar Storage System
Product Description
Durable and Long-Lasting: Our Hybrid Solar Energy Power System boasts a 25-year warranty, ensuring a long lifespan and minimal maintenance requirements, giving you peace of mind for years to come.
Smart Monitoring and Control: With Wi-Fi/GPRS device and CAN communication interface, our system allows for real-time monitoring and remote control, enabling you to optimize energy usage and performance.
Robust and Durable Design: Constructed with an IP68 junction box and air cooling system, our system is designed to withstand harsh environments and extreme temperatures, making it suitable for various industrial and commercial applications, including those specified by the user.
Specification
| Model | 150KW |
| Half Cut Mono 630W Solar Panel | 235Pieces |
| PV Combiner Box | 8 Input 1 output /3PCS 3 Input 1 output /1PCS |
| Hybrid Inverter | HPS150 |
| High Voltage LiFePo4 Battery Bank | 150Kwh |
| DC Cable 4mm² | 2400 meter |
| MC4 Connector | 120 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground |
| Kindly Reminder: The Above System Configuration For lnitial Designing,The System Configuration Are Subject to Changing Depends on Your final Installation Conditions and Requirements. For More Details, Please Send Your Inquiry To Sunket Team. Thank You! |
|
Product Display
| Tier 1 Brand Monocrystalline half-cut single/double glass/all black/full screen solar panel 1. Positive Power Tolerance: 0~+5w; 2. 100% EL Double-inspection Ensures Modules are Defects Free; 3. 5BB, 6BB, 9BB, 10BB, 12BB, MBB Available 4. 158.75mm, 166mm, 182mm, 210mm Size 5. Full Cell, Half Cut, 3-Cut; 6. Perc/HJT/All Black/Full Screen/Frameless Tech; 7. Modules Binned by Current to Improve System Performance; 8. Tier 1 Brand: Longi, Trina, Jinko, JA, and our own brand Sunrover Solar. |
Hybrid Solar Inverters 1.Single-phase Inverter(3-5KW) ; Three-phase Inverter(6-100KW); 2. Support Multiple Machine Units; 3. Auto Restart while AC is Recovering; 4. Built-in MPPT Solar Charge Controller; 5. Compatible to Mains Voltage or Generator Power; 6. Selectable Input Voltage Range for Home Appliances and Personal Computers; 7. Configurable AC/Solar input Priority via LCD Setting. |
Solar Batteries 1. Deep Cycle Long Lifespan 2. Stable High Discharge Performance; 3. Easy Installation and Maintenance-free; 4. Class A lithium Iron Phosphate Battery Type; 5. 12V/24V/48V/51.2V High Voltage Battery ; 6. More than 6000 times, up to 90% DOD; 7. Wide Suitability of Ambient Temperature Range ; 8. Maintenance is Simple, Reducing Deep Discharge. |

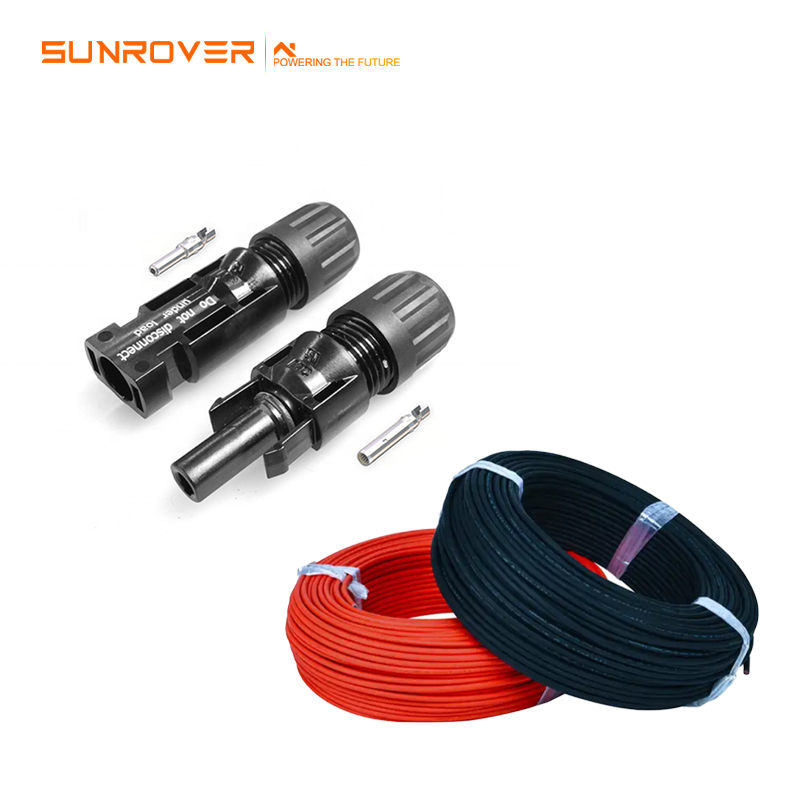

Solar System Accessories 1. Pin Diameter: 6mm; 2. Degree of Proteetion: IP68; 3. Max System Voltage: 1000V; 4. Rated Current: 30A(4m3/6m3); 5. Excellent Resistance to U.V, Oil, Greases, Oxygen and Ozone; 6. Excellent Flexibility and Stripping; 7. High Voltage and Current Carring Capacity; 8. IP 65 Degree Lightning Protection. |
Solar Mounting Assembly 1. Ground Solar Mounting System; 2. Residential Roof(Pitched Roof); 3. Car parking Solar Mounting System; 4. Vertical Wall Solar Mounting System; 5. Commercial Roof(Flat roof&workshop roof) 6. All Aluminum Structure Solar Mounting System; 7. Ballasted Mount, Do not Harm the Roof Structure. |

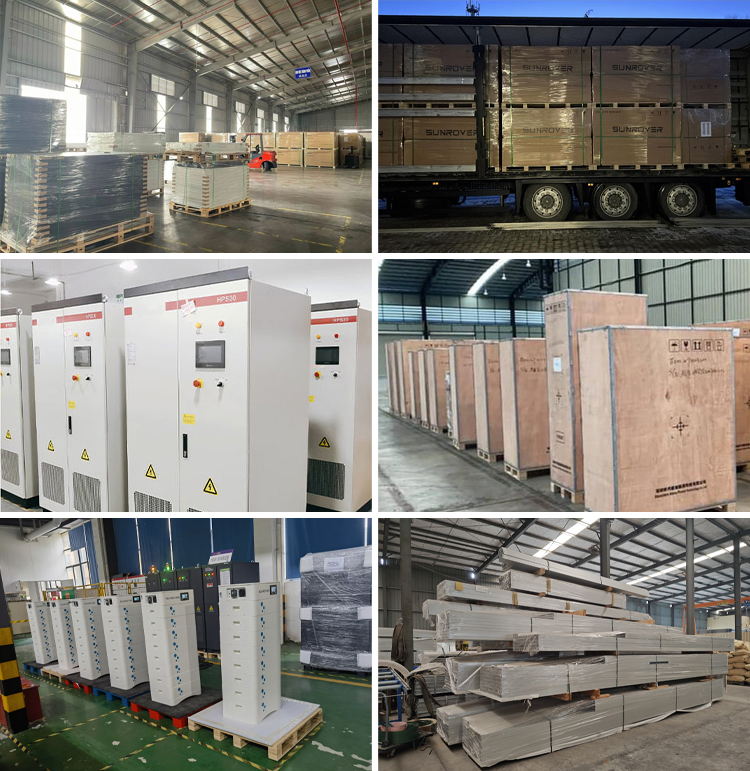

Packing & Delivery

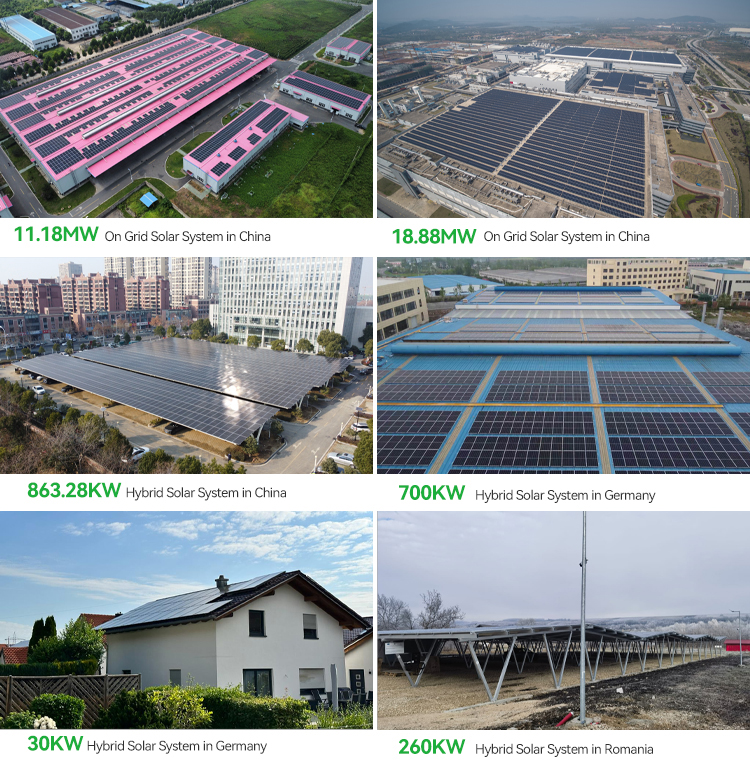

Project Cases
