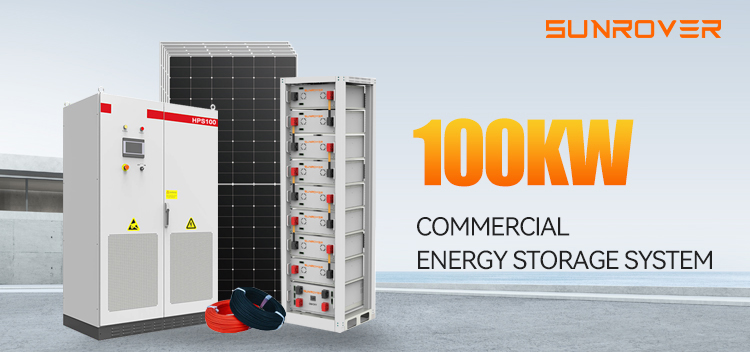

Home Bess Industrial Grid Energy Storage System
Product Description
Competitive pricing from our own component factory: In addition to partnering with renowned brand
component manufacturers, we have our own component factory, which gives us a pricing advantage.
Through vertical integration and efficient production processes, we are able to offer competitive prices,
helping customers lower costs and achieve higher returns on investment.
component manufacturers, we have our own component factory, which gives us a pricing advantage.
Through vertical integration and efficient production processes, we are able to offer competitive prices,
helping customers lower costs and achieve higher returns on investment.
Specification
| Model | 100KW |
| Half Cut Mono 590W Solar Panel | 170 Pieces |
| Hybrid Inverter | 100KW |
| High Voltage LiFePo4 Battery Bank | 200Kwh |
| DC Cable 4mm² | 1000 meter |
| MC4 Connector | 20 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground |
| PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool |
| High Voltage LiFePo4 Battery Bank | 120Kwh |
| DC Cable 4mm² | 1800 meter |
| MC4 Connector | 100 Pairs |
| Mounting System | Customized Product Based On Installation Roof/Ground |
| PV Installation Tools | Wire Cable Cutter & Stripper, Disassembly Tool |
Product Display
Half Cut Mono 590W Solar Panel
1. Power: 590W
2. Size: 2279*1134*35mm
3. Weight: 29KGS/PCS
4. Module efficiency:21.3%
5. Voltage at Pmax:49.9V
6. Current at Pmax:14A
7. Open-circuit Voltage:41.96V
8. Short-Circuit Currect:13.11A
9. A grade high quality solar panel
100KW On Grid/Off Grid Hybrid Inverter
AC(On-Grid/Off-Grid)
1.Max output power(KVA):110
2.Rated power(KW):100
3.Rated voltage(V):400
4.Voltage range(V):320-460
5.Rated frequency(Hz):50/60
6.Frequency Range(Hz):45~55/55~65
7.Max.PV power(KW):120/180/240
8.Battery voltage range(V):420-850
9.Dimension W*D*H(mm):1200*800*2,050
10.Weight(kg):1,120/1,150/1,180
Lithium Battery Energy Storage Systems
1.Type of core:Lithium iron phosphate
2.Rated energy(KwH):40
3.Nominal capacity (AH):100
4.Nominal voltage(VDC):384
5.Operating voltage range(VDC):312-450
6.Recommended Charge Voltage(VDC):420
7.Recommended discharge cutoff voltage(VDC):366
8.Standard charging current (A):50
9.Maximum continuous charge current(A):100
10.Working temperature:-20~65℃
11.Reference size(D*W*Hmm):530*550*1810
Tile Roof Mounting System
1.Application:Tile roof, Flat tile roof, Slate roof
2.Inclination:Parallel to the roof
3.Material:AL 6005-T5.SUS 304
4.Finish:AL 6005-T5 Anodized, SuS 304 Shot blasting
5.Module orientation:Landscape or Portrait
Solar System Accessories
1.Solar cable：4mm2
2. PV combined box: 2inlet/1outlet
3. Fues
4. DC breaker
5. Lighten arrester
6. MC tools package
Packing & Delivery
Project Cases
Solar System Packing Methods
LCL shipping requires wooden box packaging to protect solar panels during transportation. For FCL shipping, standard packaging is cost-effective, but we can customize wooden packaging if needed. Solar Systems shipped only via sea or train, do not recommed air shipping. First due to the volume is big, air shipping costs much. Second air shipping do not allow battery loading. By the way,lithium battery should be packed individually with wooden box.
