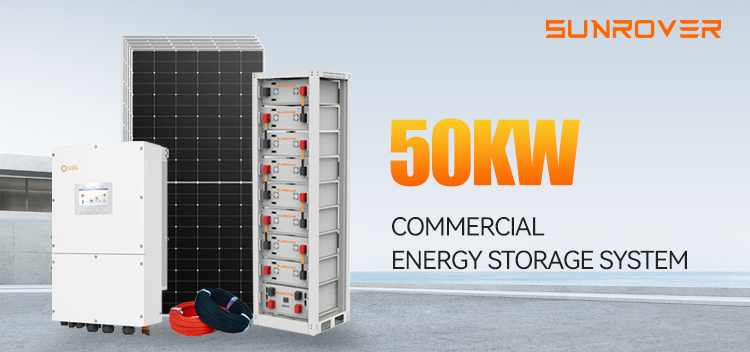

Standard Solar Energy System for Commercial
Product Description

Advantages of Off Grid Solar Energy Systems
Cost-friendly: Solar energy is free solution, so you won’t have a hefty electricity bill, and there’s minimal maintenance
required.
Eco-friendly: Solar energy systems rely on solar power, so you’re doing your part for the environment.
Great Options for Rural Areas: If you live in a rural area and commonly experience blackouts, off-grid solar systems are a great choice as you’re generating your own electricity.
Great for Emergencies: Even if you’re not living in a rural area, you can take comfort knowing that you’ve got backup power in case of an emergency.
Easy to Maintain: Off-grid solar systems are sturdy and don’t require much maintenance, all you need to do is occasionally clean the body and change the battery bank.
Specification
Model | 50KW |
Solar Panel | |
Maximum power (Pmax/W) | 580W |
Open Circuit Voltage (Voc/V) | 51.79 |
Short Circuit Current (Isc/A) | 14.29 |
Voltage at Maximum power (Vmpp/V) | 42.71 |
Current at Maximum Power (Imp/A) | 13.58 |
Solar Inverter | |
MPPT voltage range | 150 - 850 V |
MPPT number / Max. input strings number | 4 / 8 |
Battery type | Li-ion |
Battery voltage range | 150 - 800 V |
No. of battery inputs | 2 |
Communication | CAN / RS485 |
Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V |
Rated grid frequency | 50 Hz |
Solar Battery | |
Energy Capacity | 200.704kWh |
Battery Module | 51.2V280Ah |
Number of Modules | 14 |
Nominal Voltage | 716.8V |
Max.Charge Current | 140A/0.5C |
Design Life | 15 Years(25℃) |
Mounting Bracket | |
Bracket Type | Customization |
Product Display

Half Cut Solar Panel
*Highest conversion efficiency of 22.23%
*0~+5W positive power tolerance
*PID Protection
*Higher performance under low light.
*Junction box:IP68
Application level:Class A
*12Years product warranty,25 Years power output guarantee.
PV Combiner Box
*Lightning protection
*Optional string monitoring function
*IP65 environment compatibility
*Flexible design, 8,16 inputs optional
*RS485 communication interface
*Input fuse for over current protection

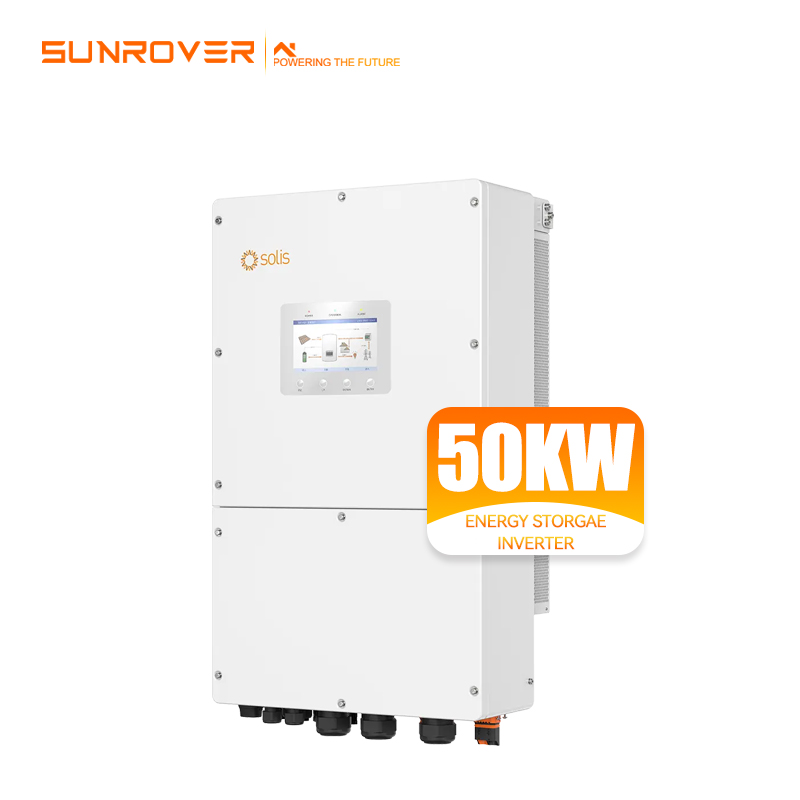

Solis three phase inverter
*Various working modes can be set flexibly. *Flexible Battery Type(li-ion,lead-acid). *PV controller can be expanded to facilitate
flexible.
*Touchscreen LCD
*Uninterruptable power supply guaranteed
*Supports remote control of DG
Lithium-ion Battery
*Easy installation and maintenance
*LFP high-capacity Li-Ion battery with aluminum shell,over 130wh/kg
*Self-developed 3-level BMS, complex protection, safe and reliable
*Long cycle life, 8000 cycles
*Standard 10 Years Warranty.
Solar Accessories
*Black/Red color 4/6/10 mm2 PV cable
*Universal compatible PV connectors
*With CE TUV certificate
*15Years Warranty
PV Mounting System
*Customized for roof&ground etc. *Adjustable angle from 0~65 degree
*Compatible with all type solar panel
*Mid & End Clamps: 35,40,45,50mm
*L Foot Asphalt Shingle Moount & Hanger Bolt Optional
*Cable Clip & Tie Optional
*Ground Clip & Lugs Optional
*25Years Warranty

Packing & Delivery

Project Cases
