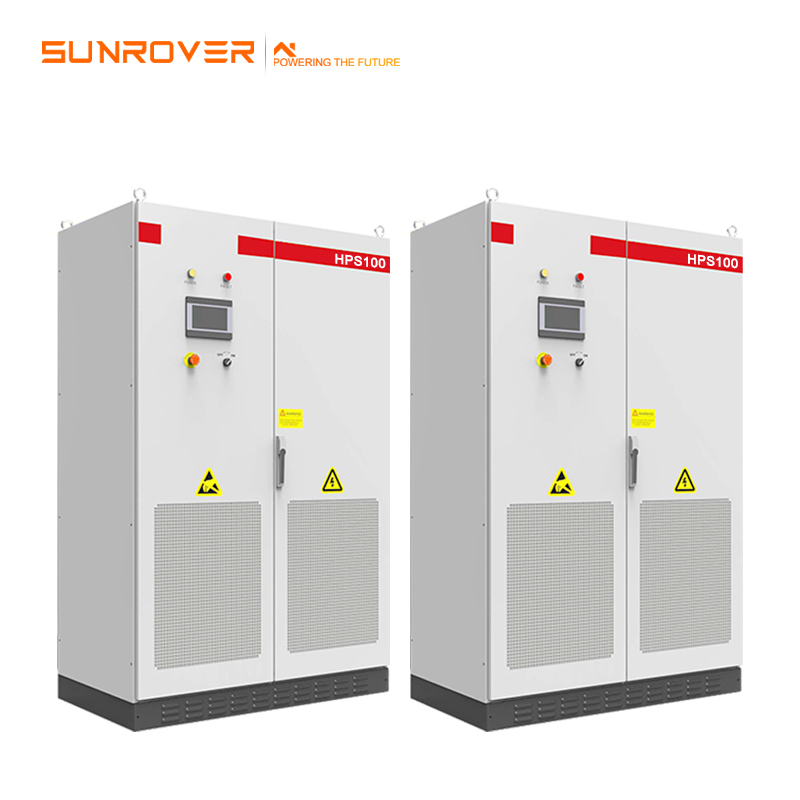

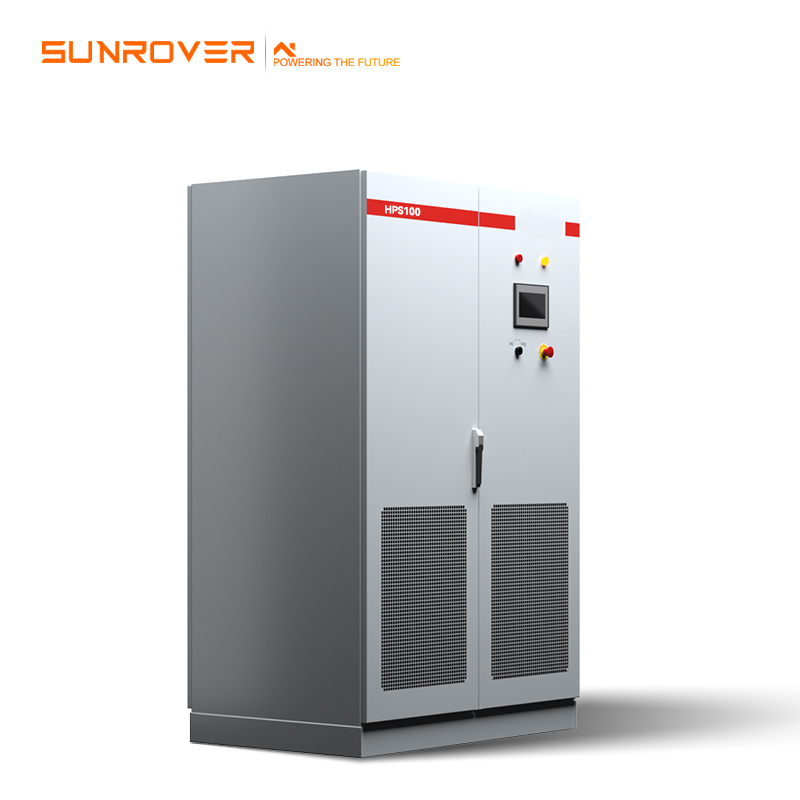

Atess 100kw 3 Phase Solar Storage Inverter
Product Description

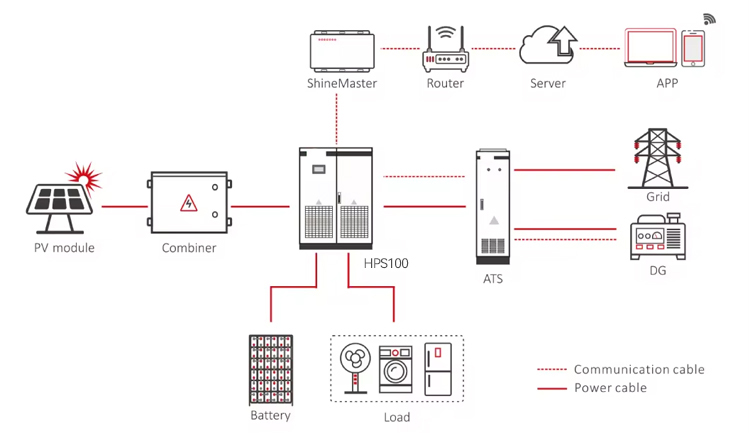

ATESS HPS bidirectional battery inverter is designed for energy storage system, it converts DC current generated by battery bankinto AC current and feed it into the load/grid, also it can take power from solar inverter or grid to charge battery to ensure uninterrupted power supply to the load.
Specification
| HPS100 | |
| AC(on-grid) | |
| Apparent power | 110kVA |
| Rated power | 100kW |
| Rated voltage | 400V |
| Rated current | 144A |
| Voltage range | 360V-440V |
| Rated frequency | 50/60Hz |
| Frequency range | 45~55/55~65Hz |
| THDI | <3% |
| PF | 0.8 lagging~0.8 leading |
| AC connection | 3/N/PE |
| AC input | 200kVA |
| AC(off-grid) | |
| Apparent power | 110kVA |
| Rated power | 100kW |
| Rated voltage | 400V |
| Rated current | 144A |
| THDU | ≤2% linear |
| Rated frequency | 50/60Hz |
| Overload capability | 110%-10 mins 120%-1 min |
| DC (Battery and PV) | |
| Max. PV open-circuit voltage | 1000V DC |
| Max. PV power | 150kWp |
| PV MPPT voltage range | 480V-800V DC |
| Battery voltage range at Max. charge power |
500V-600V |
| Battery voltage range | 352V-600V |
| Max. charge power | 150kW |
| Max. discharge power | 110kW |
| Max. charge current | 300A |
| Max. discharge current | 313A |
| General Information | |
| Protection degree | IP20 |
| Noise emission | <65dB(A)@1m |
| Operating temperature | -25 °C~+55 °C |
| Cooling method | Forced-air |
| Relative humidity | 0-95% non-condensing |
| Max. altitude | 6000m (derate over 3000m) |
| Dimension (W/H/D) | 1200/1900/800mm |
| Weight | 948kg |
| Build-in transformer | Yes |
| Lightning protection | Type II |
| Transfer between on/off grid |
Automatic≤10ms |
| Standby consumption | <30W |
| Communication | |
| Display | Touch screen |
| Communication | RS485/CAN |
| Certificate | |
| CE , MEA , PEA , UKCA, AS 4777.2, EN 61000-6-2:2019 , EN 61000-6-4:2019 , EN62109-1:2010 , EN62109-2:2011 , EN 50549-1:2019 , IEC62109.1 , IEC62109.2, NRS 097-2-1:2017, G99, VDE-AR-N 4105:2018,DIN VDE V 0124-100:2020-06, PSE:2018-12，DEWA |
|
| * The MPPT voltage of PV strings should be 50~200V higher than the Max battery voltage. | |
Product Display

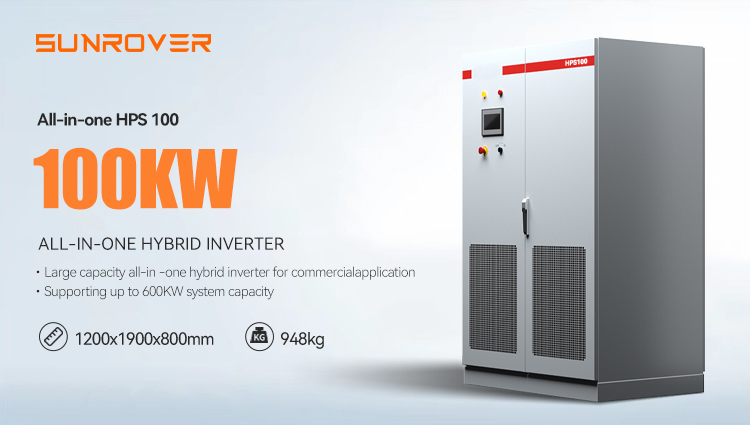

All in one hybrid inverter:
*Programmable working mode.
*Scalable design:Quadruple capacity by paralleling 4 units.
*Hot back-up One inverter fails in parallel system, the other(s) takes over seamlessly.
*Touchscreen LCD:More convenient for parameter setting and maintenance.
*Seamless transfer:Uninterruptable power supply guaranteed.
*Dry contact output: Supports remote control of DG.
SMART MONITORING PLATFORM：
* Open station supports one-click installation and registration
* Problem support one-click dispatch and navigation
* Safe operation, traceable logs, etc
* Support full lifecycle data storage to ensure data security and reliability

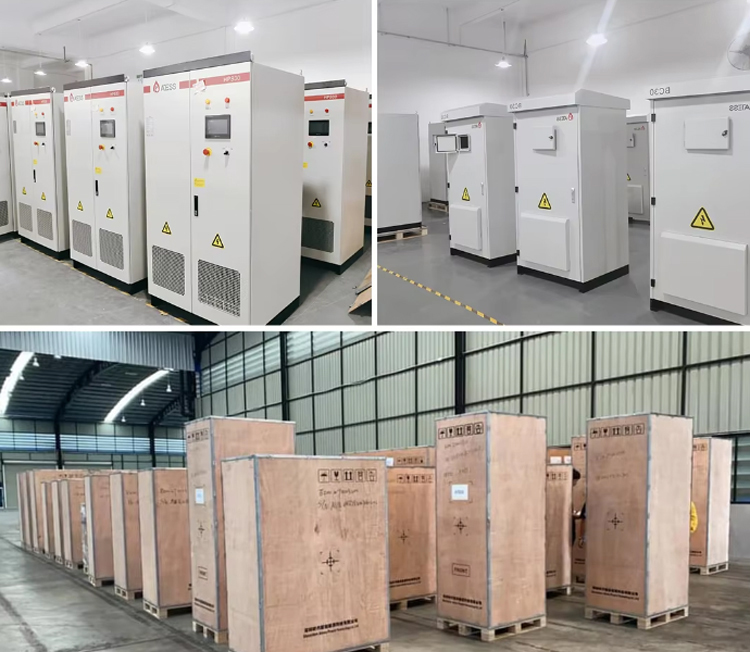

Packing & Delivery
Project Cases
High Power Capacity: The Atess Commercial Storage Inverter offers a wide range of power capacities, from 30kw to 150kw, making it suitable for various commercial applications, including large-scale solar systems and industrial power backup.
Advanced Communication Options: The inverter supports both WiFi and RS485 communication protocols, allowing for seamless integration with various monitoring systems and remote access.
Long-Lasting Lithium-Ion Battery Compatibility: The inverter is designed to work with lithium-ion batteries, providing a reliable and efficient energy storage solution for commercial applications.
User-Friendly Interface: The inverter features a touch screen display, making it easy for users to monitor and control the system.
Comprehensive Certifications and Warranty: The Atess Commercial Storage Inverter meets various international safety standards, including CEI 0-21, IEC 62109.1, and MEA, and comes with a 5-10 year warranty for added peace of mind.
