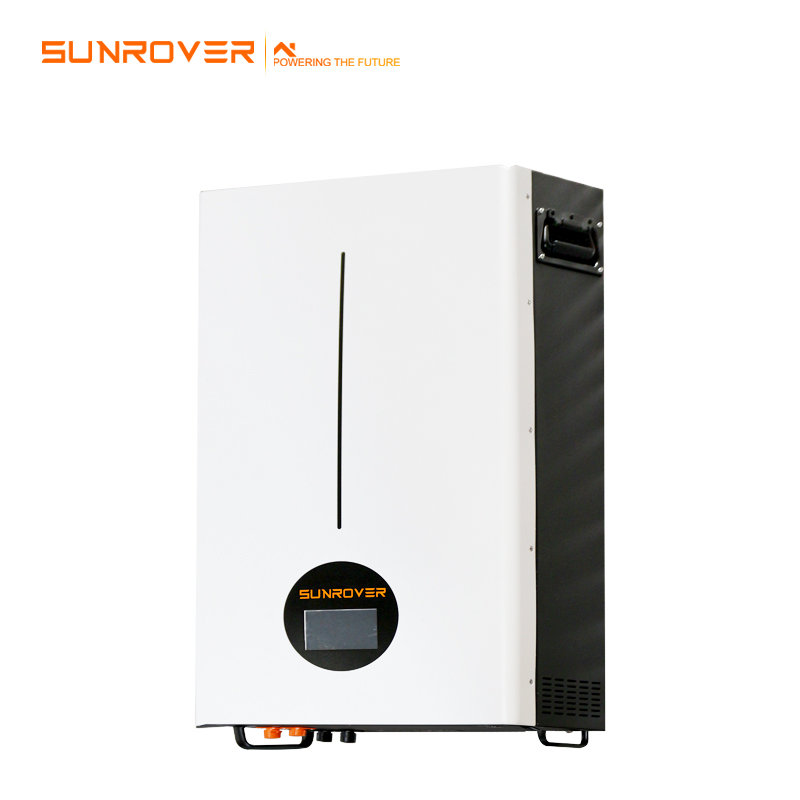

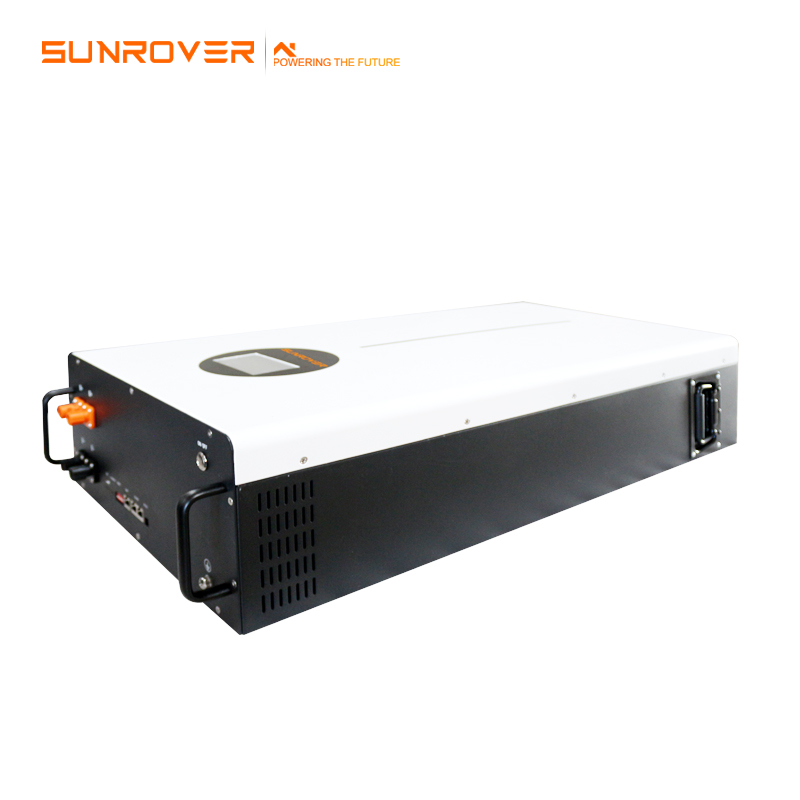

51.2v 200ah Solar Battery 10.24kwh Lithium Battery Pack

This is a type of deep cycle and high capacity LFP battery with improved safety, long lifespan, and optimized user experience lt is especially designed with lP65 for more fiexible and easier installation indoor or outdoor with wall-mounted and landed installation options. With up to 10 kWh for a single unit and max 12 units in parallel with superior performance, it can meet the household electricity demand.Get ready with it for super power storage for your life

    Contact us
    product details

    Product Description

    汇智电池200

    Battery Details
    1. Dustproof and waterproof cover on top of the battery.
    2. Standard configuration with battery level display, you can check the remaining battery level in real time.
    3. Various communication interfaces, CAN/RS485, etc. can be customized according to requirements.

    Specification

    Model HZW-200-16S
    Product 51.2V200AH
    Nominal Voltage (V) 51.2V
    Nominal Capacity (AH) 200AH
    Nominal Capacity(WH) 10240WH
    Usable Capacity (WH) 9216WH
    Discharge Voltage (V) 44.8V
    Charge Voltage (V) 57.6V
    Recommend Charge/Discharge Current (A) 100A
    Max.Charge/Discharge Current (A) 200 (3S)
    Communication RS485/CAN/Bluetooth (Optional)
    Operation Temperature 0-40℃
    Storage Temperature -20-70°C
    Humidity 15%-80%
    Dimension 440x804x196mm
    Weight 104kg
    Certification CE/IEC/UN38.3/MSDS
    Design Life 10 years+
    Cycle Life ≥4000@25°C
    Electrical Design Redundancy >20%

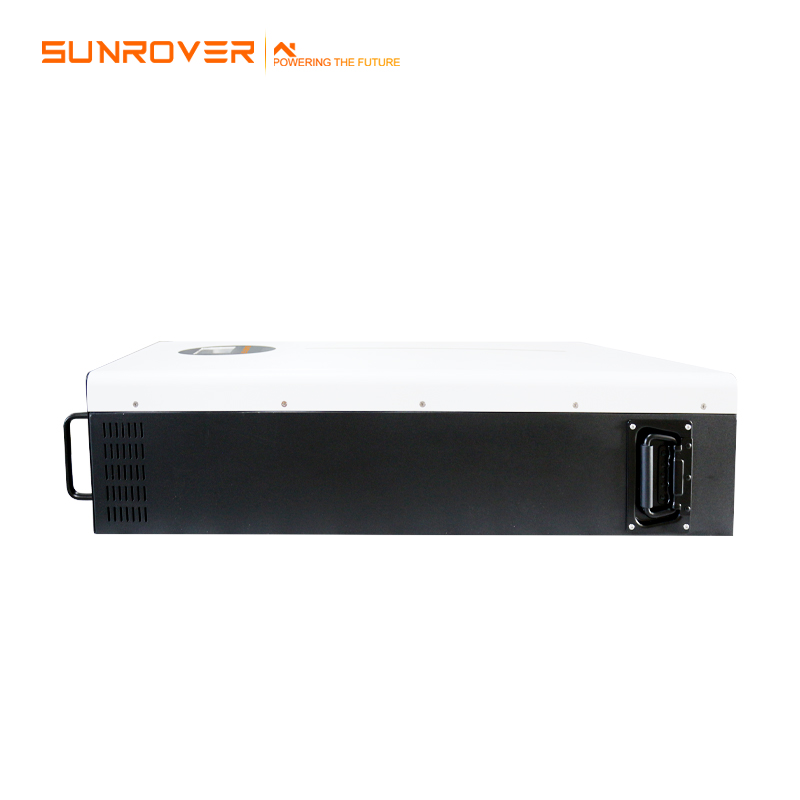

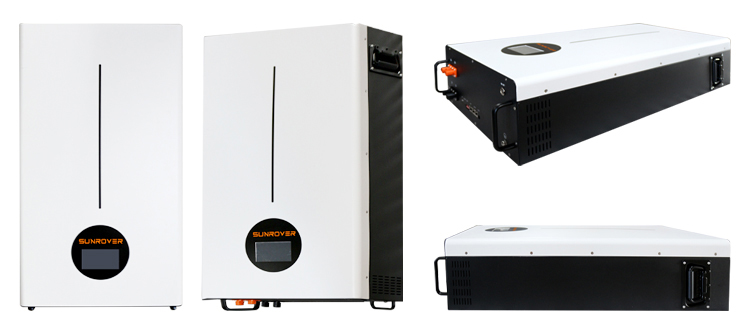

    Product Display

    200-三视图

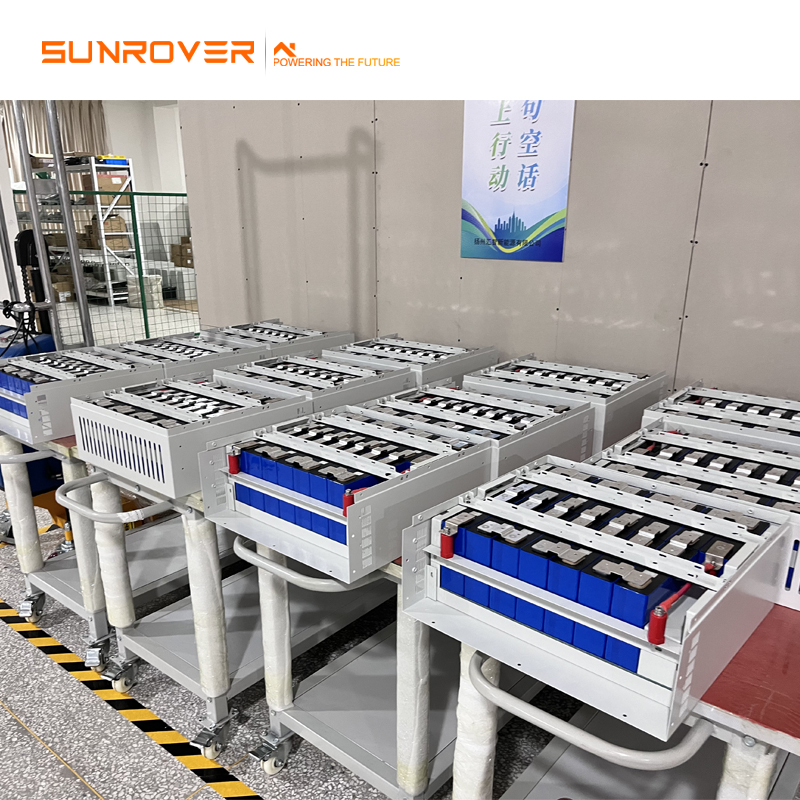

    Inside The Battery
    1.Top garde A cell
    2.Standard cycle life is more than 6000 times
    3.Metals, green and environmentally friendly
    4.Designed to last over 10 years
    Other advantages
    1、CAN/RS485 etc. can be customized according to the needs of remote monitoring and flexible application
    2、High energy, low power consumption
    3、Wall mounting, space saving

    Packing & Delivery

    打包

    Project Cases

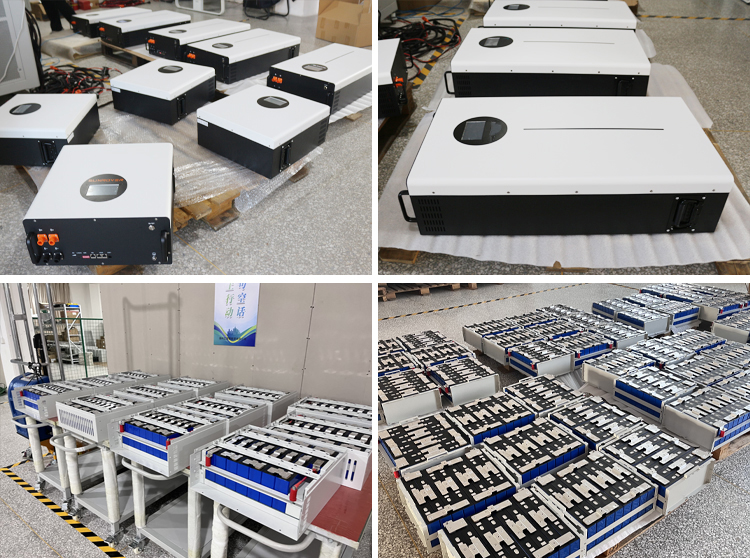

    实物展示
    Lighter and Smaller 15% weight reduction, 30% volume reduction
    Unlimited Cycles/ 10 Years warranty
    Build in Active fire protection system
    -20 degrees low temperature charging function .Battery low temperature heating function (optional)
