Solis US on Grid Inverter Solis-1P(6-10)K-4G-US
Product Description
Customized Support for Home and Commercial Use: This inverter is designed for both residential and commercial solar projects, making it a versatile solution for various user needs. With software reengineering support, users can tailor the product to their specific requirements, as requested by [the user].
Long-Lasting and Durable: The Solis inverter is built to last with a sturdy design and a weight of 18kg, ensuring it can withstand various environmental conditions. Its compact size of 333x573x249 mm makes it a space-efficient solution for homes and businesses.
Specification
| Models | 6K | 7.6K | 10K |
| Input DC | |||
| Max. input voltage | 600 V | ||
| Rated voltage | 330 V | ||
| Start-up voltage | 120 V | ||
| MPPT voltage range | 100 - 500 V | ||
| Max. input current | 14 A / 14 A / 14 A | 14 A / 14 A / 14 A / 14 A | |
| Max. short circuit current | 22 A / 22 A / 22 A | 22 A / 22 A / 22 A / 22 A | |
| MPPT number/Max. input strings number | 3/3 | 4/4 | |
| Output AC | |||
| Rated output power | 6 kW | 7.6 kW | 10 kW |
| Max. apparent output power | 6 kVA | 7.6 kVA | 10 kVA |
| Max. output power | 6 kW | 7.6 kW | 10 kW |
| Rated grid voltage | 1Ф/PE, 240 V / 208 V | ||
| Rated grid frequency | 60 Hz | ||
| Max. output current for 240V grid | 25 A | 31.7 A | 41.7 A |
| Max. output current for 208V grid | 28.8 A | 36.5 A | 43.3 A |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) | ||
| THDi | <3% | ||
| Efficiency | |||
| Max. efficiency | 97.80% | ||
| CEC efficiency | 97.50% | ||
| Protection | |||
| DC reverse-polarity protection | Yes | ||
| Ground fault monitoring | Yes | ||
| Anti-islanding protection | Yes | ||
| Integrated AFCI | Yes | ||
| Integrated DC switch | Yes | ||
| Rapid shutdown | Built-In APS or Tigo Transmitter | ||
| Surge Protection | DC Type III / AC Type III | ||
| Compliant MLRSD Products | TS4-A-F/2F/O, APSmart RSD-S / RSD-D | ||
| General Data | |||
| Dimensions (W*H*D) | 13.1*28.8*9.8 in (333*732*249 mm) | ||
| Weight | 45.2 lbs (20.5 kgs) | 45.6 lbs (20.7 kgs) | |
| Topology | Transformerless | ||
| Self-consumption (night) | <1 W | ||
| Relative humidity | 0-100% | ||
| Operating ambient temperature range | -13°F to 140°F (-25°C to 60°C) | ||
| Storage environment | -13°F to 176°F (-25°C to 80°C) | ||
| Ingress protection | TYPE 4X | ||
| Noise emission (typical) | <30 dB(A) | ||
| Cooling concept | Natural convection | ||
| Max. operation altitude | 13,120 ft (4000 m) | ||
| Compliance | UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 |
||
| Features | |||

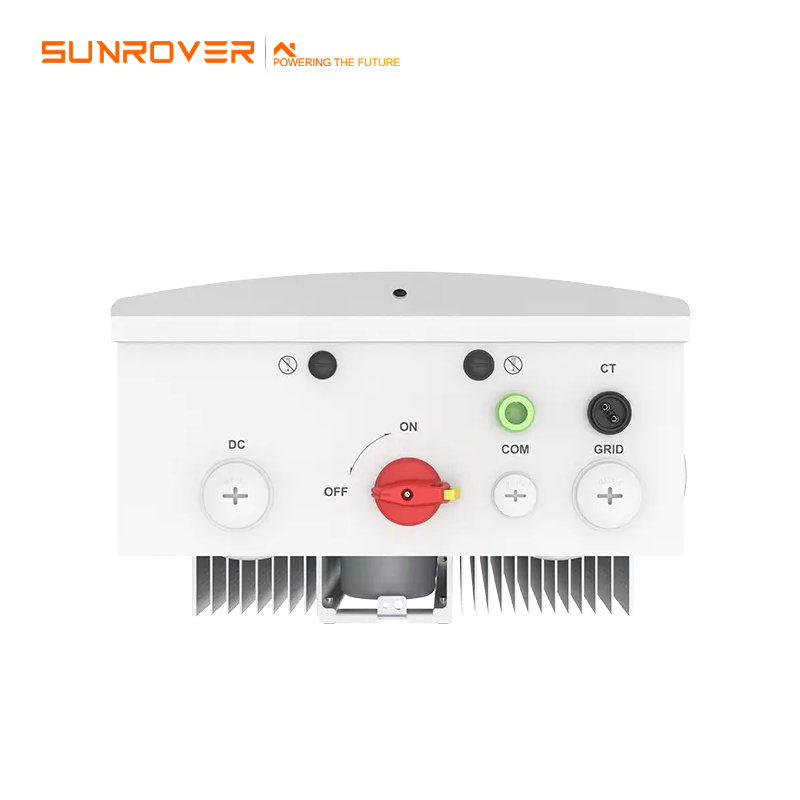

| DC connection | 2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, Screw clamp terminal | ||
| AC connection | 2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, OT terminal | ||
| Display | LCD | ||
| Communication | RS485, Optional: Cellular, Wi-Fi | ||

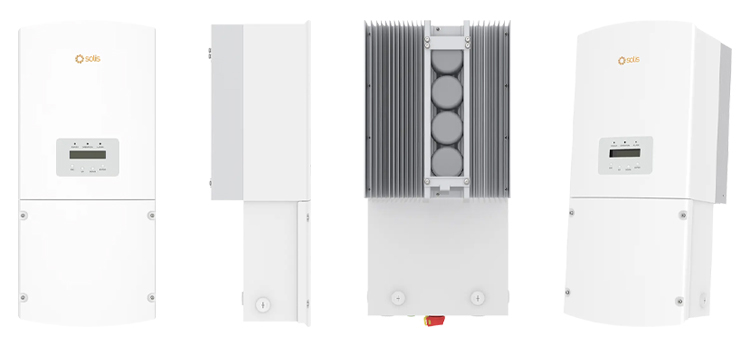

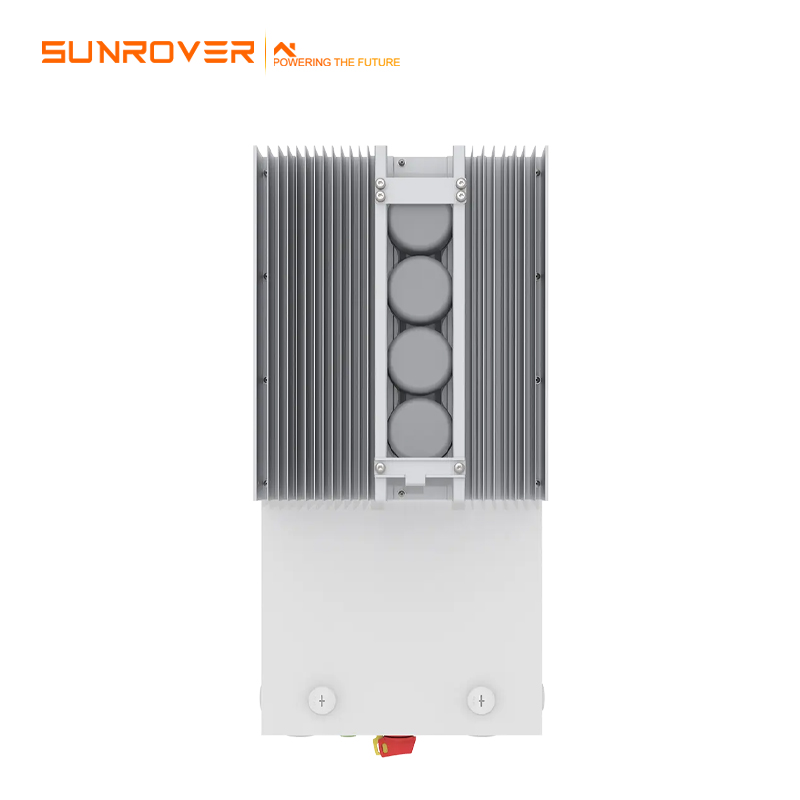

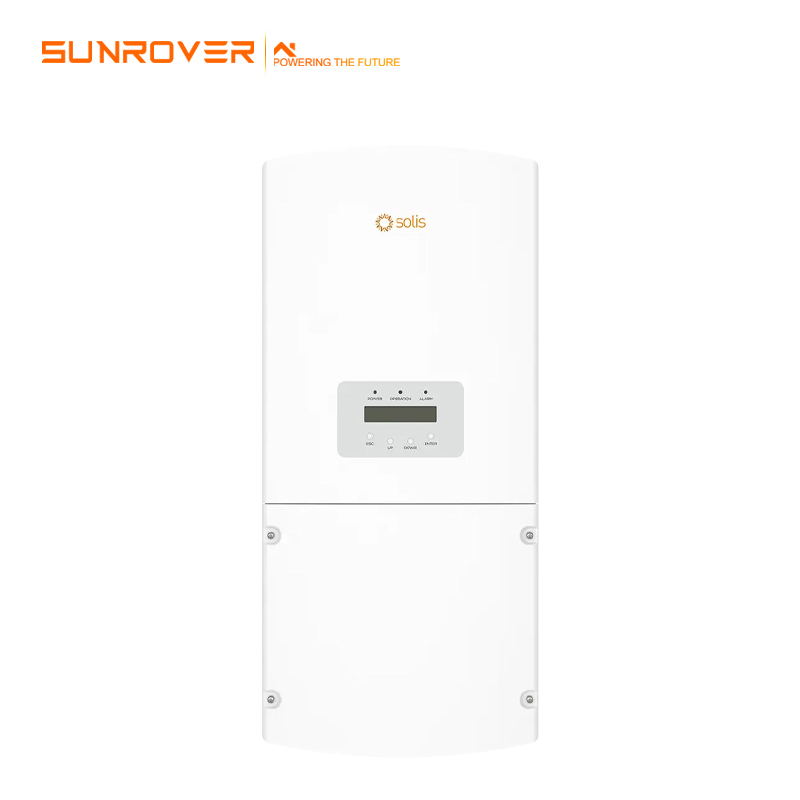

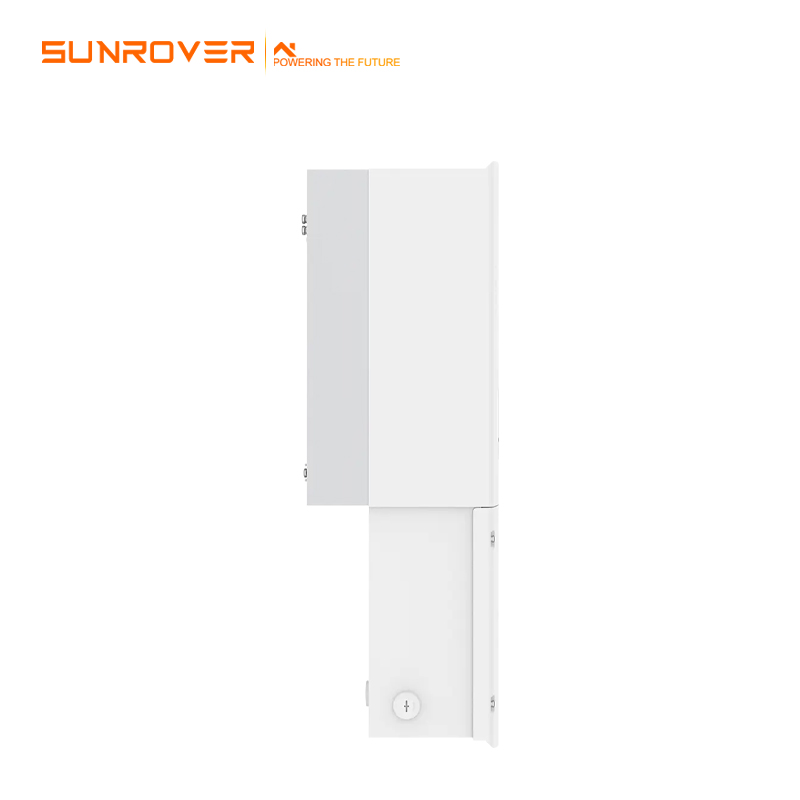

Product Display
User-Friendly Interface: The inverter features an LCD screen, providing users with real-time monitoring and easy access to system performance data. This user-friendly interface allows for seamless monitoring and maintenance, as requested by [the user].
Extended Warranty Options: The Solis 10kw inverter offers a standard 5-year warranty, with the option to extend it to 10 years, providing users with peace of mind and protection for their investment.
