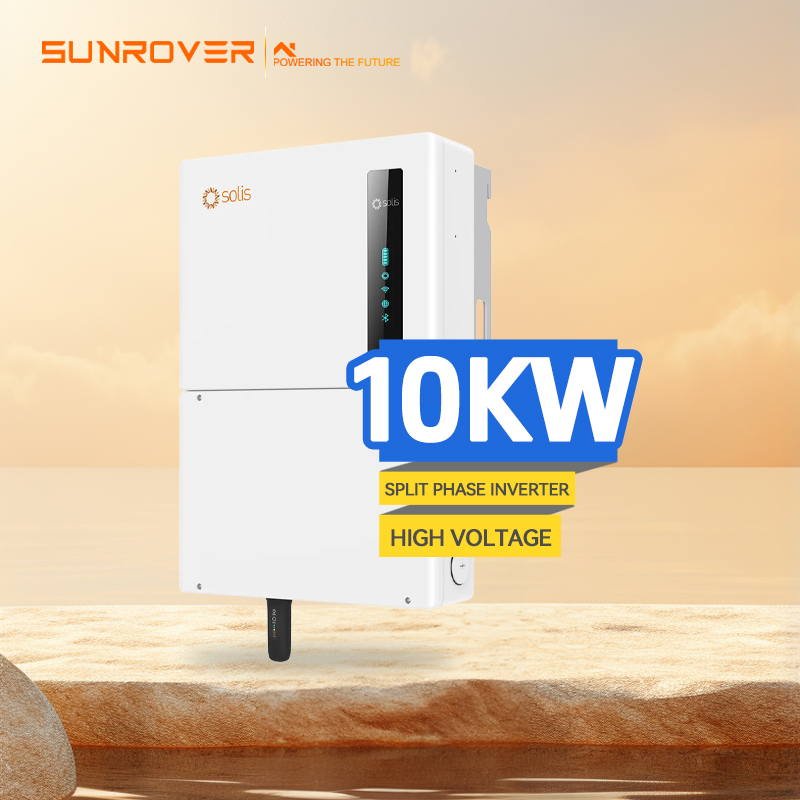

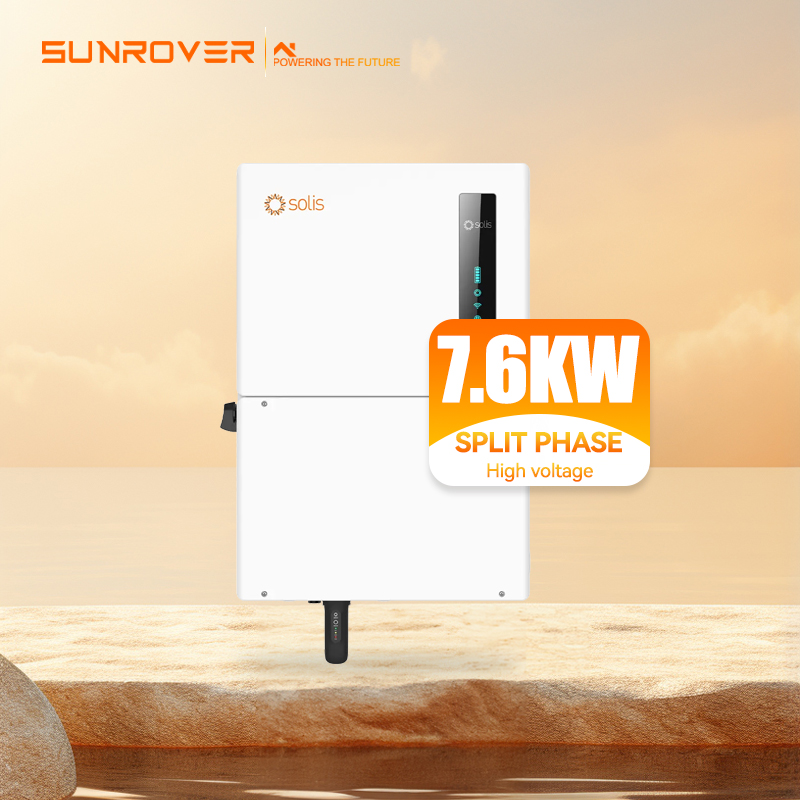

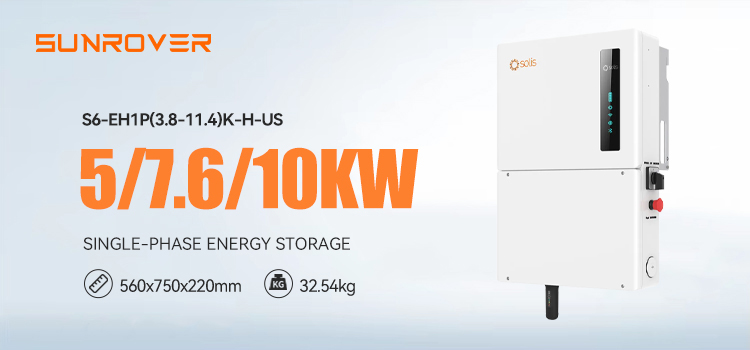

Solis S6-EH1P(3.8-11.4)K-H-US US Version Split Inverter
Product Description
Features:
Up to 4 MPPTs and 16A of DC input current allows for PV array design flexibility
Optimization, module-level monitoring,and rapid shutdown options available

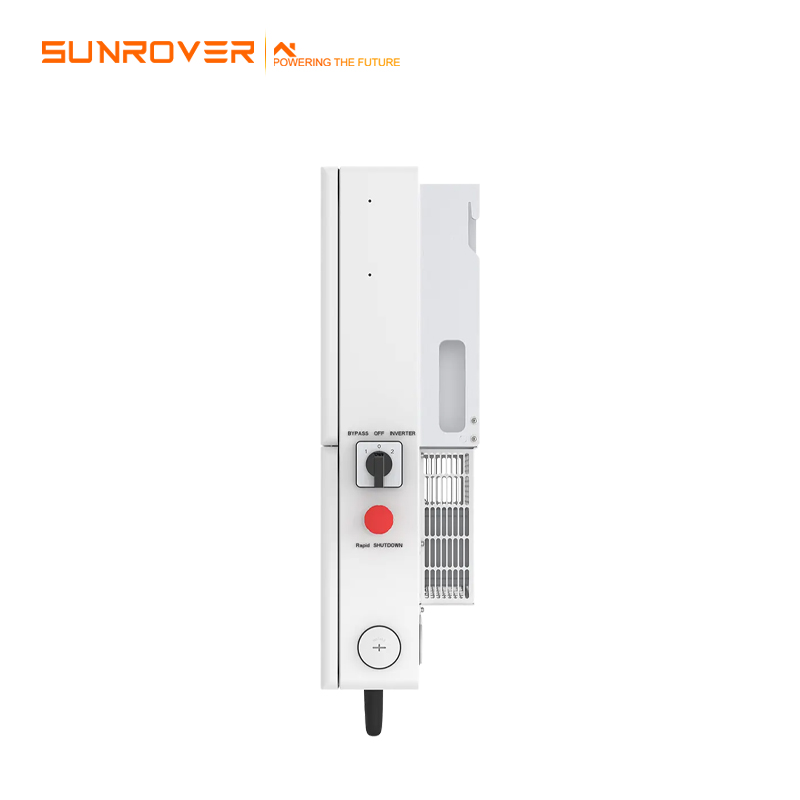

External RSD, EPO signal and BYPASS switch are available
UL 9540 certified with multiple different battery brands (LG, BYD,Pylontech,ect)
Bluetooth connection to mobile phone, make the setting and operation easier
Automatic UPS switching and up to 180% 10s surge power back up overload capacity support industrial air conditioner
Intelligent AC coupling scheme, easily upgrade existing grid-connected systems
Whole-home backup, generator integration, and load shading function with the new SolisHub
Supports 1ph and 3ph flexible connection on both the Grid and Backup Port
Specification
| Models | 5K | 7.6K | 10K |
| DC Input (PV) | |||
| Max. input voltage | 600 V | ||
| Rated voltage | 380 V | ||
| Start-up voltage | 80 V | ||
| MPPT voltage range | 80-520 V | ||
| Max. input current per string | 16 A | ||
| Max. short circuit current per string | 25.6 A | ||
| Number of MPPTs/Number of strings per MPPT | 3/1 | 4/1 | |
| Energy Storage | |||
| Battery type | Lithium-ion | ||
| Battery voltage range | 120-500 V | ||
| Maximum charge/discharge current | 25 A | 50 A | |
| Battery communication | CAN/RS485 | ||
| Number of batteries per inverter | See Battery Compatibility Sheet | ||
| AC Output (Grid) | |||
| Rated output power | 5 kW | 7.6 kW | 10 kW |
| Max. apparent output power | 5 kVA | 7.6 kVA | 10 kVA |
| Rated output voltage | 240 V | ||
| Rated frequency | 60 Hz | ||
| Rated output current | 20.8 A | 31.7 A | 41.7 A |
| Max. output current | 20.8 A | 31.7 A | 41.7 A |
| THDi | <3% | ||
| AC Input (Grid) | |||
| Input voltage range | 211-264 V | ||
| Max. input current | 31.2 A | 47.6 A | 62.6 A |
| Frequency range | 58.8-61.2 Hz | ||
| AC Output (Backup and Off-grid) | |||
| Rated output power | 5 kW | 7.6 kW | 10 kW |
| Max. apparent output power | 8 kVA, 10 sec | 12.2 kVA, 10 sec | 16 kVA, 10 sec |
| Back-up switch time | <10 ms | ||
| Phase Power | 240 V Split-Phase | ||
| Rated output voltage (L1-L2) | 240 V | ||
| AC output voltage range | 211-264 V | ||
| Rated grid frequency | 60 Hz | ||
| Frequency range | 55-65 Hz | ||
| Rated AC output current | 20.8 A | 31.7 A | 41.7 A |
| Max. output overcurrent protection, 10 sec | 33.3 A | 50.7 A | 66.7 A |
| Max. allowable phase imbalance | 100% | ||
| Backup support configurations | Whole-home and dedicated loads | ||
| Power factor | >0.99 (0.8 leading - 0.8 lagging) | ||
| THDv (@linear load) | <3% | ||
| Efficiency | |||
| PV Max. efficiency | 97.00% | 97.60% | |
| PV CEC efficiency | 96.50% | 97.00% | |
| Battery charged by PV Max. efficiency | 98.50% | ||
| Battery charged/discharged to AC Max. efficiency | 97.00% | ||
| Protection | |||
| Ground fault detection | Yes | ||
| Residual (leakage) current detection | Yes | ||
| Integrated AFCI | Yes | ||
| DC reverse-polarity protection | Yes (PV only) | ||
| Manual inverter bypass switch | Yes | ||
| Rapid Shutdown NEC 2017 | Integrated SunSpec-certified Transmitter | ||
| Compatible RSD Receivers | See MLRSD Compatibility Sheet | ||
| Protection class/Over voltage category | I/II | ||
| General Data | |||
| Dimensions (W*H*D) | 19.21*28.35*8.66 in (490*720*220 mm) | 22.05*29.53*8.66 in (560*750*220 mm) | |
| Weight | 52.43 lbs lbs (23.78 kgs) | 71.74 lbs (32.54 kgs) | |
| Topology | Transformerless | ||
| Self-consumption (night) | < 20 W | ||
| Operating ambient temperature range | -13 °F to 140 °F (-25°C to 60°C) | ||
| Ingress protection | TYPE 4X | ||
| Cooling method | Natural convection | ||
| Mounting type | Wall Bracket | ||
| Max. operation altitude | 13,120 ft (4000 m) | ||
| Compliance | UL 1741, UL 1741SB, IEEE1547-2018&2020, UL 1699B, UL 1998, California Rule 21, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B |
||
| Generator support | Yes; up to 25 kW (with a Solis Hub) | ||
| Features | |||

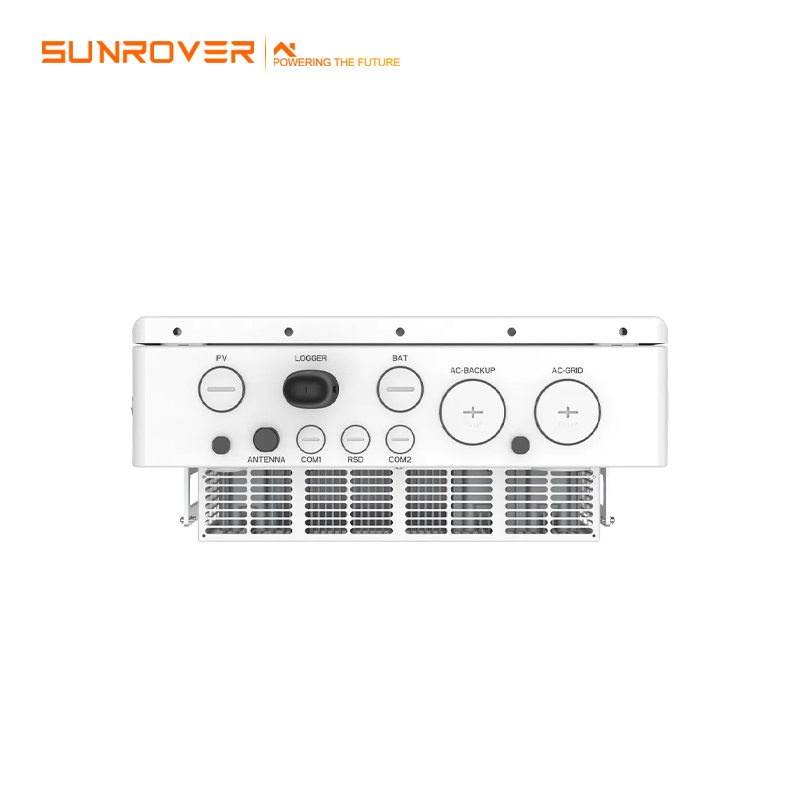

| DC connection | 1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals | ||
| AC connection | 1.5 in. knockouts for conduit (x3) on the side and bottom; Spring clamp terminals | ||
| Interface | LED indicator lights, Bluetooth/Mobile application | ||
| Monitoring platform | SolisCloud (modbus map and API sharing available upon request) | ||
| Revenue Grade Meter | Integrated ANSI C12.20 option | ||
| Communication | RS485, Cellular, Wi-Fi, Optional: LAN | ||
| Integrated RSD Transmitter Brands | See the MLRSD Compatibility Sheet | ||
Product Display
Highly Flexible
Can be used for both whole-home and dedicated loads backup systems
Four MPPTs allows for versatile PV array design
Provides split-phase backup power
UL9540 certified with multiple battery brands to provide up to 80 kWh of storage capacity per inverter
Multiple working modes to meet different use case scenarios
California Rule 21 and HECO listed with the UL 1741SB and UL 1741 PCS certifications
Packing & Delivery
Project Cases
Intelligent Design
SunSpec modbus certified with the latest SunSpec models
Supports generate interconnection and allows the generator to function as the grid source if utility power is lost
Capable of frequency-watt control for interoperability with other smart devices
Offers all of the smart inverter functions detailed in lEEE 1547-2018
Utilizes an energy management system that maximizes efficiency and offers multiple operating modes
Solis app allows for remote system configuration and firmware upgrading
Safe and Reliable
Reverse DC polarity protection and software-based AFCI detection
NEC 2017 compliant with multiple integrated PLC transmitter options available
Fanless design using convection cooling for lower failure rate and complexity
Third-party tested and validated for product reliability
