Solis on grid EU 215-255kva inverter
Product Description
Advanced Monitoring System: The Solis solar inverter features a comprehensive app monitoring system,
allowing users to track and monitor their solar panel performance through their phone or computer,
providing real-time updates on yield and fault tracking.
allowing users to track and monitor their solar panel performance through their phone or computer,
providing real-time updates on yield and fault tracking.
Multi-Application Compatibility: This inverter is suitable for various applications, including residential, commercial, and industrial use, making it a versatile solution for different types of solar panel installations.
High Efficiency and Safety: With a maximum operating voltage of 60VDC and a safety feature that ensures less than 60VOC, this inverter prioritizes user safety while maintaining high efficiency levels.
Customizable Support: The Solis inverter offers software reengineering support, allowing users to tailor the system to their specific needs and requirements.
Compliance with International Standards: This inverter is certified by prominent regulatory bodies, including CE, ETL, and Inmetor, ensuring compliance with international standards and regulations.
Specification
| Models | 215K-PLUS | 255K | 255K-PLUS |
| Input DC | |||
| Max. input voltage | 1500 V | ||
| Rated voltage | 1080 V | ||
| Start-up voltage | 500 V | ||
| MPPT voltage range | 480 - 1500 V | ||
| Max. input current | 9 × 30 A | 14 × 26 A | 12 × 30 A |
| Max. short circuit current | 9 × 50 A | 14 × 40 A | 12 × 50 A |
| MPPT number / Max. input strings number | 9 / 18 | 14 / 28 | 12 / 24 |
| Output AC | |||
| Output power | 215 kVA@30°C / 205 kVA@ 40°C / 195 kVA@50°C | 255 kVA@30°C / 235 kVA@40°C /220 kVA@50°C | |
| Rated grid voltage | 3/PE, 800 V | ||
| Grid voltage range | 640 - 920 V | ||
| Rated grid frequency | 50 Hz / 60 Hz | ||
| Max. output current | 155.2 A | 184.0 A | |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) | ||
| THDi | < 3% | ||
| Efficiency | |||
| Max. efficiency | 99.0% | ||
| EU efficiency | 98.8% | 98.7% | 98.8% |
| Protection | |||
| DC reverse-polarity protection | Yes | ||
| Short circuit protection | Yes | ||
| Output over current protection | Yes | ||
| Surge protection | DC Type II / AC Type II | ||
| Grid monitoring | Yes | ||
| Anti-islanding protection | Yes | ||
| Temperature protection | Yes | ||
| Strings monitoring | Yes | ||
| I/V Curve scanning | Yes | ||
| Night time SVG function | Yes | ||
| Integrated PID recovery | Yes | ||
| Integrated DC switch | Yes | ||
| General Data | |||
| Dimensions (W × H × D) | 1125 × 770 × 384 mm | ||
| Weight | 109 kg | 113 kg | |
| Topology | Transformerless | ||
| Self-consumption (night) | <2W | ||
| Operating ambient temperature range | -30 ~ +60°C | ||
| Relative humidity | 0 - 100% | ||
| Ingress protection | IP66 | ||
| Cooling concept | Intelligent fan-cooling | ||
| Max. operation altitude | 4000 m | ||
| Grid connection standard | EN50549, G99, AS4777.2, VDE0126, IEC61727, VDE4110, CEA 2019 | ||
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4 | ||
| Features | |||
| DC connection | MC4 connector | ||
| AC connection | OT terminal (max. 300 mm²) | ||
| Display | LCD | ||
| Communication | RS485, Optional: PLC | ||

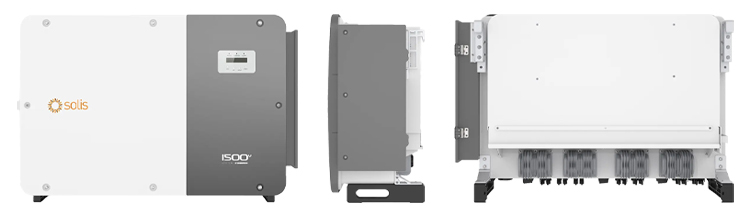

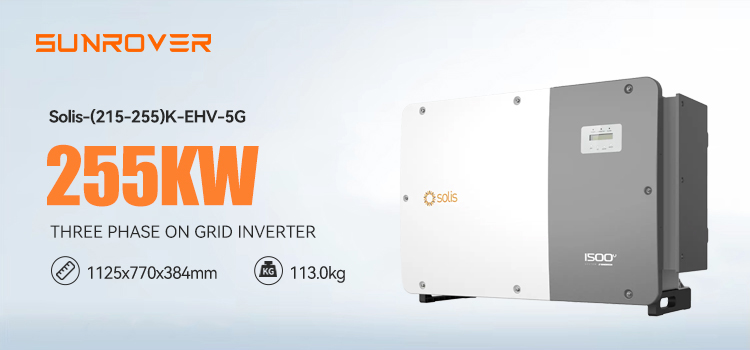

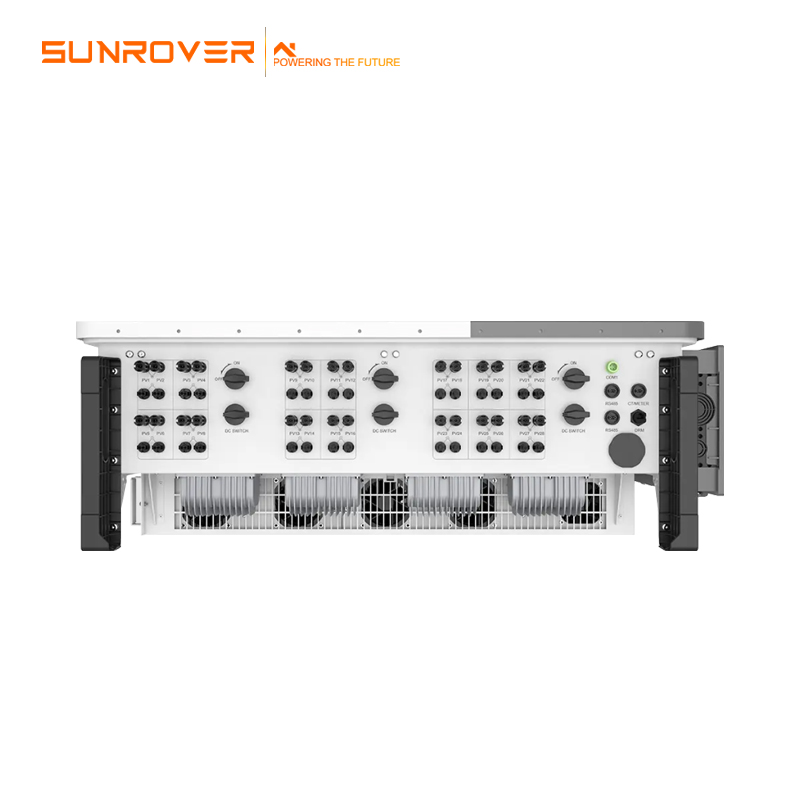

Product Display
Efficient
* 9/12/14 MPPTs, max. efficiency 99.0%
* > 150% DC/AC ratio
* High power tracking density 55MPPT/MW
* Compatible with 550W+ bifacial modules
Safe
* IP66
* Built-in PID recovery for better module performance
* Fuse free design, safe and maintenance free
* Globally recognised branded componentry for longer life
Smart
* Night SVG function
* Intelligent string monitoring, smart I-V curve scan
* Remote firmware upgrade with simple operation
Economic
* Power line communication (PLC) (optional)
* DC side supports "Y" connector
